We are proud to have a reputation of providing fast turnarounds of your machining needs. When you need consistent high-quality, rapid results – Motor-Classic CNC is always ready to deliver.
By adopting a partnership approach, we work closely with You to deliver the best available result using our 5 Axis machining centres.
The machines which will make your parts are:
For further technical specifications and cutting capabilities, please contact us.
We can manufacture anything from one-off components to a full production series.
| Table size | ø 650 mm |
| Workpiece diameter max. | 885 mm |
| Workpiece height max. | 625 mm |
| Workpiece weight max. | 2 000 kg |
| Spindle rpm max. | 18 000 rpm |
| High-preassure cooling | 30 bar |
| Range X/Y/Z/A/C | 850/700/500/+91/-120 |
| Table size | ø 800 mm |
| Workpiece diameter, max. | 1 250 mm |
| Workpiece height, max. | 1 370 mm |
| Workpiece weight, max. | 1 410 kg |
| Spindle rpm, max. | 10 000 rpm |
| High-preassure cooling | 15 – 70 bar |
| Workpiece diameter, max. | ø 658 / 420 mm |
| Workpiece length, max. | 1 500 mm |
| Spindle clearance | ø 51 mm |
| Workpiece weight, max. | 300 kg |
| Spindle rpm, max. | 5 000 rpm |
| High-peassure cooling | 15 – 70 bar |
| Table size | 1 300 x 550 mm |
| Range X/Y/Z/A | 1 050/530/510/360 |
| Workpiece weight, max. | 1 200kg |
| Spindle rpm, max. | 12 000 rpm |
| Spindle clearance | ø 70mm |
| Workpiece diameter, max. | ø 695 mm |
| Turning diameter, max. | ø 380 mm |
| Turning length, max. | 538 mm |
| Spindle clearance | ø 65 mm |
| Workpiece weight, max. | 500 / 300 kg |
| Spindle rpm, max. | 5 000 rpm |

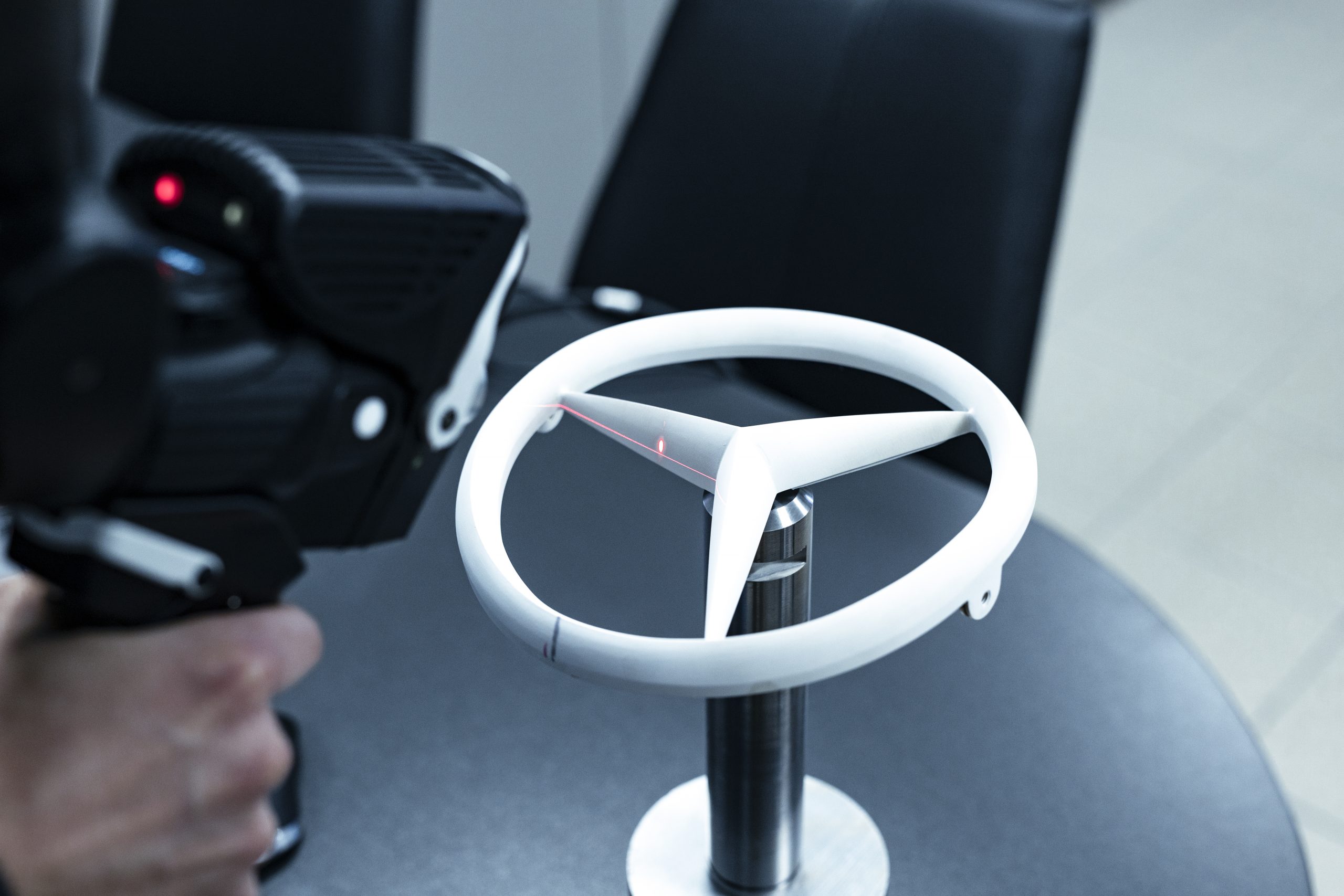

| Laser scanner | Hexagon Absolute Arm 85 |

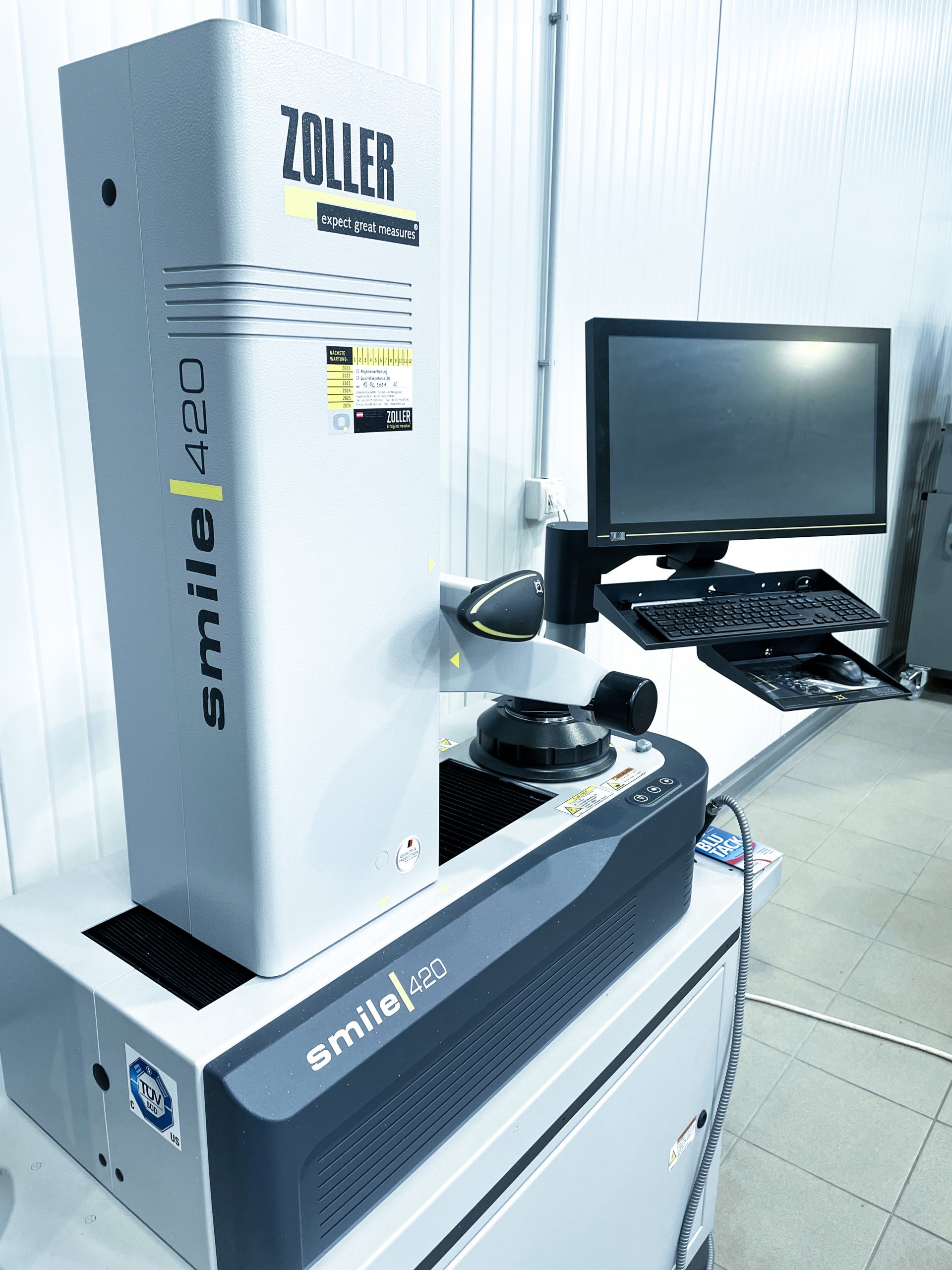

| Tool measuring device | Zoller |
| Complex 3in1 software | VISI |
| 2D/3D Planning software | Solid Edge |
| CAM software | EdgeCAM |
3D Scanner
Smooth CAM RS
Edge CAM
Solid Edge
VISI 3in1 software
